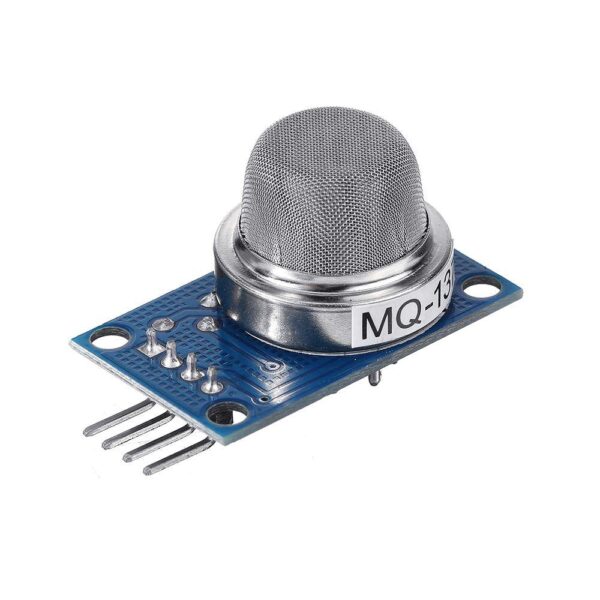

KS3342 | MQ-137 Ammonia NH3 Gas Detection Sensor Module

Description

With signal output indication.
Dual signal output (analog output and TTL level output)
TTL output valid signal is low level. (The signal light is on when the output is low, and it can be directly connected to the MCU)
The analog output voltage is 0~5V, the higher the concentration, the higher the voltage.
It has high sensitivity and good selectivity to carbon monoxide.
Has a long service life and reliable stability
The gas sensor used in MQ137 gas sensor is tin dioxide (SnO2) with low conductivity in clean air. When there is ammonia in the environment where the sensor is located, the conductivity of the sensor increases as the concentration of ammonia in the air increases. Using a simple circuit, the change in conductivity can be converted into an output signal corresponding to the gas concentration. The MQ137 gas sensor has high sensitivity to ammonia, and it is also ideal for monitoring other organic amines (such as trimethylamine, ethanolamine, etc.). This sensor can detect a variety of ammonia-containing gases and is a low-cost sensor suitable for a variety of applications.
